Rear mounted carried hydraulic shooting snow plough ZRH-T is a quality and fast help for hard work. The plough has a robust experienced design with minimum needs for maintenance. Hydraulic system equipped by two hydraulic cylinders is ideal for force balance in case of either left hand or right hand plough loading.
Rear mounted hydraulic shooting plough ZRH-T
Large radius plough spin prevent the snow overfall above the plough and allows to use the weight of the removing snow for tractor rear axle loading.
Its connection to operating machine is easy.
Its connection to operating machine is easy.
The rear plough ZRH-T is equipped by hitch class 2. It has in standard equipment a steel blade and depth foot to assure its stability if being parked.
Would you like to know more?
- Maximal power of the towing machine is 60 kW.
- Maximum working speed is 15 km/h.
- Maximum transport speed is 40 km/h.
- Plough shooting ± 30°.
Like an option we can deliver:
- Blade from rubber or hardox
- Hydraulic protection against shock
- Position lighting

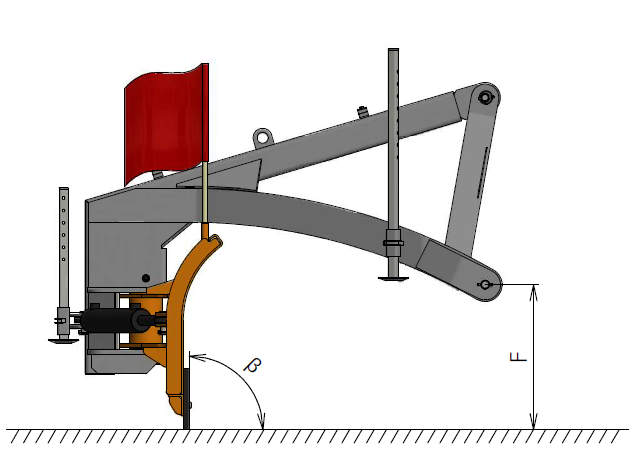

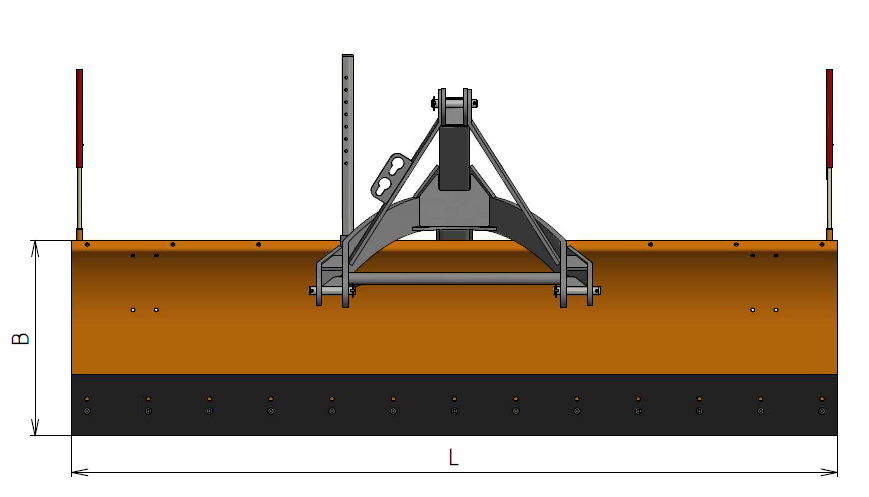

Technical parameters
| Finish | REAR | REAR | REAR |
|---|---|---|---|
| Type | ZRH-T | ZRH-T | ZRH-T |
| Commercial labelling | ZRH T 2200 | ZRH T 2400 | ZRH T 2600 |
| A Plough width (mm) | 2240 | 2440 | 2640 |
| A1 Plough width (mm) | 2165 | 2340 | 2510 |
| A2 Plough width (mm) | 2540 | 2740 | 2940 |
| B Length (mm) | 1885 | 1935 | 1980 |
| B1 Length (mm) | 1475 | 1475 | 1475 |
| C Height (mm) | 1130 | 1130 | 1130 |
| C1 Height (mm) | 780 | 780 | 780 |
| Weight (kg) | 480 | 500 | 520 |
| Shooting angle | ± 30° | ± 30° | ± 30° |
| Blade from steel | · | · | · |
| Blade from hardox | · | · | · |
| Blade from rubber | · | · | · |
| Blade from vulkolan | − | − | − |
| Blade angle | 0 | 0 | 0 |
| Protection system | HYDR. SEC. | HYDR. SEC. | HYDR. SEC. |
| Number of blade segments | 1 | 1 | 1 |
| Hydraulic flow (Lpm) | min. 20 | min. 20 | min. 20 |
| Hydraulic pressure (MPa) | max. 20 | max. 20 | max. 20 |
| Need of hydr. circuit | 1 | 1 | 1 |
| Carrier power requested (kW) | Up to 60 | Up to 60 | Up to 60 |
Agrometall s.r.o. reserves the right to modify the technical parameters and construction of mentioned products without notice.
